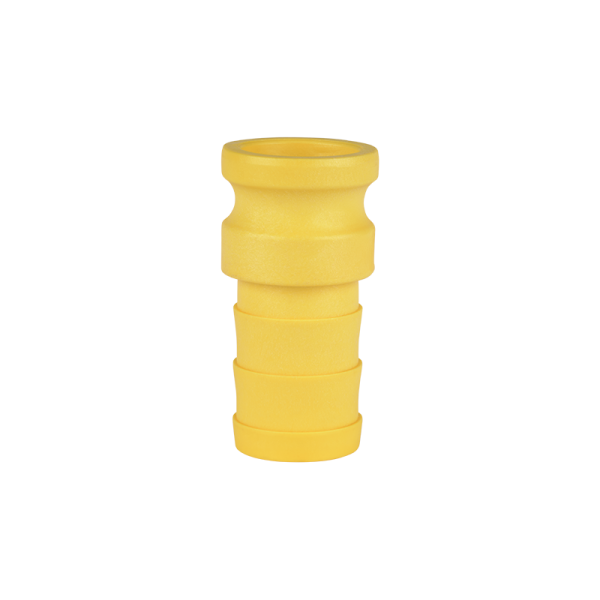

Nylon, Glass-Filled, Couplers and Adapters
Safety latches available on all couplers and dust
caps ranging in size from 1-1/4″ to 4″
Lightweight-1/2 the weight of aluminum
Strongresists cross threading, thread seizure and
out-of-round condition
Chemical resistant to most acids (Refer to chemical
resistance table for specific recommendation)
Non-conducting
All couplers feature stainless steel handles & pins, blue nylon handles available
Interchangeable with other couplers and adapters manufactured to MIL-spec
EPDM gaskets furnished standard. Buna-N, Viton® and Nitrile also available
Temperature range under normal conditions -30 deg F to 200 deg F
British thread also available. Contact customer service.
Size Operating Pressure
1/4″-1″ 175 psi max @ 70° F
1-1/4″-2″ 150 psi max @ 70° F
3″ 100 psi max @ 70° F
4″ 50 psi max @ 70° F
WARNING: To prevent accidental opening fully engage and secure handles prior to pressurizing.
