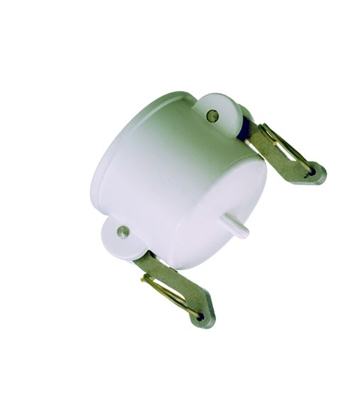

Food Grade Glass-Filled Polypropylene Couplers and Adapters
Chemical Resistant to most acids (Refer to chemical resistance tables for specific recommendation)
FDA / NSF compliant
All couplers feature stainless steel handles & pins
Interchangeable with other couplers and adapters
manufactured to MIL-spec
Nitrile gaskets furnished as standard. EPDM, Buna-N
and Viton® also available
Good mechanical strength
Resistance to alkalies, salts and alcohols
Resistance to animal, vegetable and mineral oils
Resistance to phosphoric and hydrochloric acids
Temperature range under normal conditions from 10° F to 180° F
British thread also available. Contact customer service.
Size Operating Pressure
1/4″-1″ 125 psi max @ 70° F
1-1/4″-2″ 100 psi max @ 70° F
3″ 50 psi max @ 70° F
WARNING: To prevent accidental opening fully engage and secure handles prior to pressurizing. Latches are standard on couplers 1-1/4″ and larger. Couplers 1″ and smaller are latch free. See technical drawings for details.
Food Grade Polypropylene
FDA / NSF compliant
Temperature range under normal conditions 10 deg F to 180 deg F
Various operating pressures given are at 70 deg F. However, maximum listed operating pressure must be adjusted to reflect hose manufacturers recommended temperatures and pressures.
